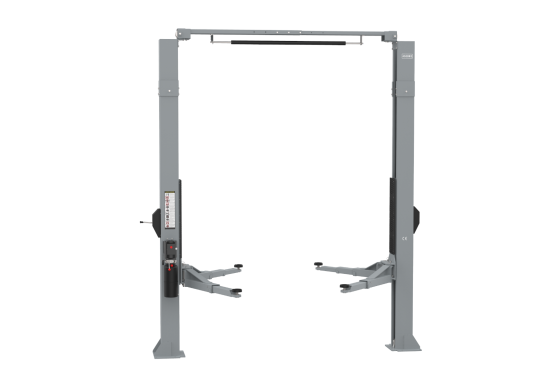

Supertracker JCL509 2-Post Lift, 4 Tonne, Asymmetrical, Electro-Hydraulic
£2,105.00
(£2,526.00 Inc. VAT)
Straightset part number:
Supertracker JCL509 2-Post Lift, 4T
Supplier:
JCL509
Availability:
Available in 3 working days.
Description
New 4 Tonne capacity 2-Post Lift / Ramp
- 4 tonne clear floor 2‐Post Lift with solenoid lock release, up button and down button
- Electro-Hydraulic, asymmetrical lift
- Ultra low and strong welded lifting arms
- Anti Toe Traps
- Drop-in lift pads
- Includes 4 x 110mm pad height adaptors.
- All equipment is finished in RAL7040 Grey
Technical data:
Lifting Capacity: 4 Tonne
Min. Height: 90mm
Max. Lifting Height: 1,900mm
Overall Height: 3,800mm
Overall Width: 3,270mm
Width between Posts: 2,780mm
Short Arm Length: 610 – 1,145mm
Long Arm Length: 706 – 1,346mm
Lifting/Lowering Time: 50 Sec./35 Sec.
Motor Power: 2.2kW
Power Supply: 380V/50Hz/3Ph.
Price includes delivery to mainland UK address. Collection only and installation packages also available, contact Straightset for more information at [email protected].
More Information
| Vehicle type | Car |
|---|---|
| Electrical / power Supply | 3ph |
