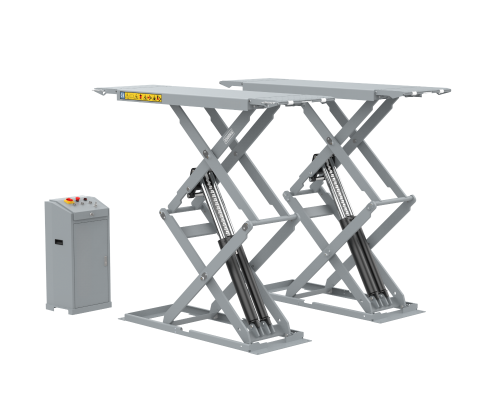

Supertracker JFR08L Full Height Scissor Lift, 3.5T
£2,868.00
(£3,441.60 Inc. VAT)
Straightset part number:
JFR08L
Supplier:
JFR08L
Availability:
Available in 3 working days.
Description
Full Height Surface Mounted Scissor Lift provides reliable, synchonised lifting, 3.5 tonne capacity
- Control cabinet with UP, DOWN, LOCK, photocell cut-off switch, main power switch, power indication light and buzzer.
- Drive-on ramps which can be locked on level as platform extension.
- Start-up device guarantees 3.5 ton lifting capacity at the initial lifting stage and smooth lowering at the last lowering stage.
- Mechanical safety lock bar with pneumatic lock release.
- Photocell synchronization device in case of uneven lifting operation.
- Adjustable up limit switch.
- Proximity sensor which stops the lift at the last lowering stage as foot protection.
- Grease points on all shafts to reduce wear out of components.
Technical specification:
Height 110mm – 1830mm
Length 1460-2100mm
Width 1980mm
Motor Power 2.2kW
Power 3ph
Finished in RAL7040 Grey
Price includes delivery to UK address within 200 miles of Worksop and access dependent. For delivery outside of this please contact for a quotation.
Price does not include installation - optional installation packages available, contact Straightset at [email protected]
More Information
| Electrical / power Supply | 2.2kW |
|---|---|
| Operation | Electro-Hydraulic |
