1/2. Lubricator

Straightset part number:
Availability: Not in our warehouse but still available to order.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

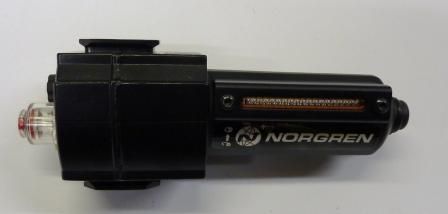

Lubricator 1/2". NORGREN Lubricator 1/2", Part No. AIR000022

EXCELON design allows in-line or modular installation
Quick release bayonet bowl
Flow sensor design provides a nearly constant oil/air ratio over a wide range of air flows
Highly visible, prismatic liquid level indicator lens
All around (360°) visibility of the sight-feed dome simplifies installation and adjustment
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Use Micro-Fog models in applications containing one or more points of lubrication.
Use Oil-Fog models to lubricate a single tool, cylinder, or other air driven device.

Technical Data

Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).

Start point (minimum flow required for lubricator operation): 0,71 dm3/s (1.5 scfm) at 6,3 bar (90 psig) inlet pressure

Maximum recommended flow: 28 dm3/s (60 scfm). Air flows above 28 dm3/s (60 scfm) create excessive air velocity, turbulence, and pressure losses. In addition, the fog produced by the lubricator will wet out on the pipe walls and will not be carried by the compressed air to the point of application.

Typical flow with 6,3 bar (90 psig) inlet pressure and 0,25 bar (3.5 psig) pressure drop: 38 dm3/s (80 scfm)
Nominal bowl size: 0,1 litre (3.5 fluid ounce)
Manual drain connection: 1/8"
Recommended lubricants: See page N/AL.8.900.935
Body: Aluminum
Transparent: Polycarbonate
Transparent with guard: Polycarbonate, steel guard
Metal: Aluminum
Metal bowl liquid level indicator lens: Transparent nylon
Sight-Feed dome: Transparent nylon
Elastomers: Neoprene and nitrile
