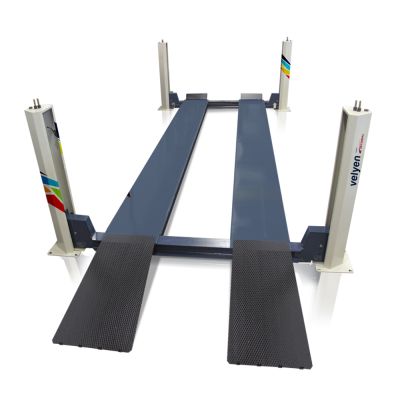

Velyen Hydraulic 4 Post Lift 25T 8m long platform

Supplier:
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

  • Commercial 4-Post Lift
  • Lifting capacity of 25 Tonne
  • 8m long platform
Full Description

Hydraulic 4-Post heavy duty commercial vehicle lift with a lifting capacity of 25000kg from Veylen.

  • 100% it’s fitted with a patented safety system meaning no air supply required electro-hydraulic in operation (with cables, pulleys & pins).
  • No noisy spindles or gearboxes.
  • Available in 25 T as standard or optional 30 T version.
  • Available with 8000 mm platforms as standard or optional 9000 mm platform version.
  • Innovative design of columns without longitudinal welds.
  • Electro-hydraulic lifting system operated by a special double piston cylinder.
  • Suspension systems and safety devices against wedges.
  • Safety system against obstacles and breakage / loosening of cables.
  • Hydraulic cylinder equipped with valve that regulates the speed of descent.
  • Safety valve in the hydraulic unit in case of overpressure.
  • 24 V operating switches. “Dead man” type, separate up / down switches, and general switch that can be padlocked.
  • Protection in the areas of the pulleys.
  • Rear and front safety against vehicle slipping.
  • Height limitation.
  • Automatic releasing of the safety wedges by pressing the “DOWN” button.
  • World patent in the security and elevation system.
  • Other commercial vehicle lifts from Velyen available in 30T, 16T, 12T, 8T, 5T and 4T.

Add to quote for a quick and convenient quotation direct to your inbox, alternatively contact our friendly sales teams on 01909 480055 or info@straightset.co.uk.

  • Specification
    More Information
    Electrical / power Supply 3ph, 230/400V, 50/60Hz, 5.5kW
    Operation Electro-Hydraulic
    Lifting height 1540mm
    Total height 9576mm
    Total width 4269mm
    Distance between columns 3500mm
    Platform width 810mm
  • Installation & Aftercare

    Installation Services

    Our Installation teams are highly skilled with years of experience in the safe installation of all types of garage and MOT equipment.

    For more information about our Installation services please click here or contact our Friendly Sales Teams on 01909 480055.

    All of our quotations for equipment include delivery* & installation onto a prepared Site, but excludes any Building or Electrical work. (*Delivery: Mainland UK within 150 miles of Worksop)



    Aftercare Services

    We are proud of offer one of the most thorough Preventative Maintenance Contracts on the market for scheduled maintenance and calibrations. Designed with maximum care, but minimum disruption to your workshop.

    For more information about our Service Maintenance Contracts please click here or contact our Service Team on 01909 480055.
