Space SM 2304N Electro-Mechanical Mobile Column Lifts

Supplier:
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

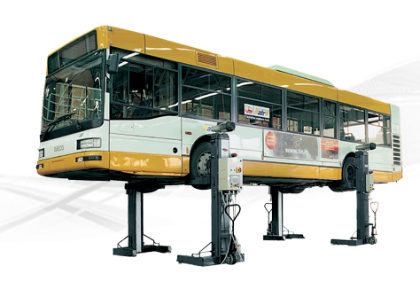

  • Mobile column lifts
  • Set of 4
  • 5.5T per column
Full Description

Set of 4, 5.5 tonne per column.

Simultaneous operation of all columns. Electronic system ensuring synchronization of all columns. Safety stop in case of malfunction. Electronic device checks the correct main supply phase sequence. Low voltage controls (24 V) on the main column with dead-man push buttons.



Screws are automatically lubricated by felt pads supplied by a permanent oil reservoir which guarantees lubrication during movement. A series of runners (10 per carriage), manufactured in Ertalon, with low friction coefficient and excellent resistance to wear, guarantee a balanced lifting of the vehicle in any position.



Large and solid base for maximum stability under load.



Lifting spindles in rolled steel with bronze main and safety nuts.



Self-supporting transportation steel wheels.



Technical specification:

Capacity per column:                                      5500kg

Motor:                                                           3.5kw

Required mains power per column:                  7.5kW, 14A

Master Column weight:                                   450kg

Slave column weight:                                     400kg

Lifting time:                                                  110 seconds

Max. Tyre diameter:                                       1200mm

Min Tyre diameter:                                         900mm

Min Rim diameter:                                          580mm



Add to quote for a quick and convenient quotation direct to your inbox, alternatively contact our Sales teams on 01909 480055 or info@straightset.co.uk.
