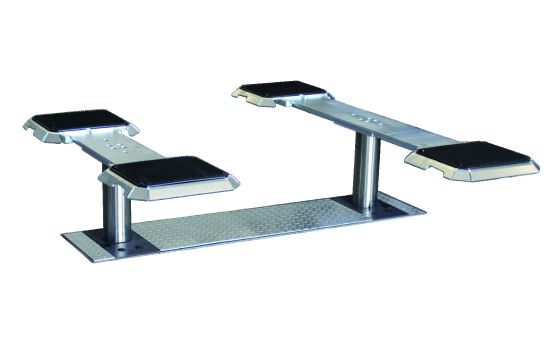

Slift DV35.19R5.20 In-ground Lift

Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

• Electro-hydraulic 2-Post In-Ground Lift

• Flat lifting heads "duett"

• Lifting capacity of 3.5 Tonne

Full Description

Electro-hydraulic Two Ram In-ground Vehicle Lift with Plate Supports.

Description of Supports:
• Flat lifting heads with rubber pads
• Sliding pieces with chamfered edges
• Rubber pad dimensions (l x w): 355 x 400mm
• Long support extendable in increments, max: 1400-2000mm
• Transversal support: 880 x 1820mm (inc. eccentric change of sliding pieces)
• Height approx. 60mm
• Hot-dip galvanised.

Description of Lifting units:
• Dual walled, angular to each other, for torsion protection.
• 2 Lifting posts, micro-alloyed chromium plated highest quality steel.
• Tooth rack, stainless steel.
• Emergency lowering unit.
• Dirt-repellent rack collar.
• CE declaration of conformity.

Standard Equipment:
• Flat lifting heads
• 2 Lifting cylinders with synchronisation monitoring.
• Hydraulic unit (closed version) for below-floor installation with 10m motor cable.
• Pump and electric motor submerged in oil tank.
• Control unit with 2 x 10m control cable (oil flex cable)
• Cables and mounting material
• Lockable main switch
• Operating instructions.

Contact our friendly Sales Teams for a quotation on 01909 480055 or or 'add to quote' for a quick and convienient quotation to your inbox.

By choosing Straightset for your garage equipment needs, you not only get quality garage equipment that will stand the test of time, but you also have the peace of mind you are dealing with experts who have years of experience in installing equipment into your workshop which is fit for purpose. With access to a sophisticated workshop design department and knowledgeable sales teams who can visit your site, we can visualise your new equipment in situ and plan your installation with minimum disruption but maximum care.

  • Specification
    More Information
    Vehicle type Car
    Electrical / power Supply 400v, 16 amp
    Motor 3kW,
    Operation Electro-Hydraulic
    Lifting time approx 35secs
    Lowering time approx 35secs
    Lifting height 1900mm
    Ram centre clearance 1350mm
    Installation depth 2380mm
