• Electro-hydraulic 2-Post In-Ground Lift
• Double telescopic swing arms
• Extension range: 861-1880mm
• Lifting capacity of 6.5 Tonne

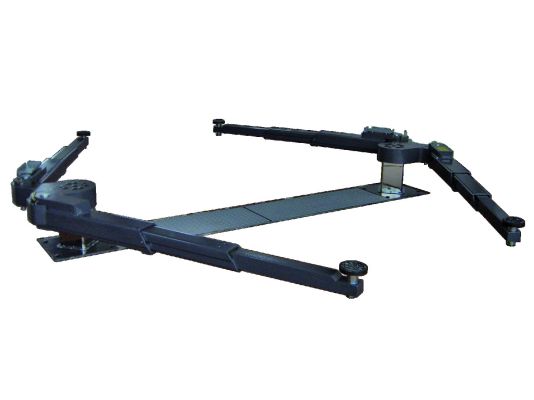

Description of Supports:
* Columns center clearance 2700 mm, cylinders beside vehicle
* Double telescopic swing arms (3 parts)
* Extension range: 861 - 1880 mm
* Automatic locking device
* Adjustment range of disk adapters: 123 - 163 mm + 50 mm
* Plug-in system with extenders 50 mm
* Audible warning signal 'CE Stop'
* Swing arms with powder coating 'anthracite grey' (RAL 7016), crossbar 'anthracite grey' (RAL 7016)
Description of Lifting Unit:
* Two post in-ground lift with nickel-plated square guide tube rotated by 45 degrees for improved ram guidance
* Cylinder movement synchronization with 'floating' crossbar
* Stationary, internal hydraulic piston rods
* Emergency lowering unit
* Submerged motor
* CE Declaration of Conformity
Standard Equipment:
- Swing arm superstructure (K6) incl. Magnetic Wheel Nut Tray (2 pcs.)
- 2 lifting cylinders with crossbar
- Hydraulic unit (closed version) for inground installation with 10 m motor cable
- Control unit with 2 x 10 m control cable (oil flex)
- Cables and mounting material
- Lockable main switch
- Operating instructions and inspection book
Contact our friendly Sales Teams for a quotation on 01909 480055 or info@straightset.co.uk.
Vehicle type | Car, Commercial |
---|---|
Country Of Origin | Germany |
Electrical / power Supply | 3 phase, 400v, 50hz, 16 amp |
Operation | Electro-Hydraulic |
Lifting time approx | 35secs |
Lowering time approx | 35secs |
Lifting height | 1900mm |
Drive through width | 2440mm |
Installation depth | 2400mm |
