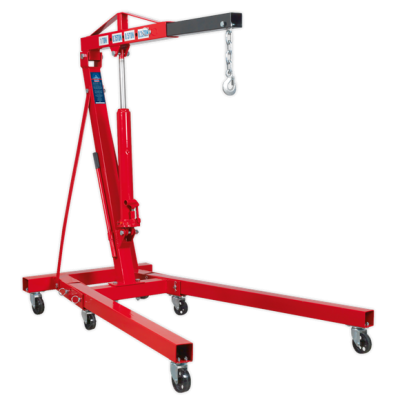

Sealey SC10 Folding Crane 1 Tonne 'KD' Type
£225.00
(£270.00 Inc. VAT)
Straightset part number:
SEALEY SC10
Supplier:
SC10
Availability:
Not in our warehouse but still available to order.
Full Description
Product description
- Super economy model delivered in knock-down form for reduced freight cost.
- Fast folding model provides easy storage and transportation.
- Heavy-duty castors.
- Weighs only 75kg and is perfect for mobile or workshop use.
- Side pump access with removable handle.
Specification
Height Jib Down: 1420mm
Height Legs Folded: 1440mm
Height of Frame: 190mm
Length Legs Extended: 1620mm
Length of Jib Position 1: 825mm
Length of Jib Position 2: 950mm
Length of Jib Position 3: 1065mm
Length of Jib Position 4: 1180mm
Length: 1700mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Max. Lift Ht at Jib Position 1: 1800mm
Max. Lift Ht at Jib Position 2: 1870mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2030mm
Rear Width: 750mm
Width Front Frame: 1010mm
Width Inside Front Frame: 920mm
