Filter 1/4"

£13.65 Ex. VAT
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

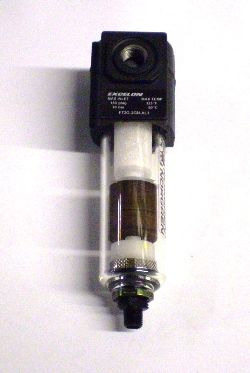

Filter - Airline. 1/4". Norgren Part No. F72G.2GN-AL3. Norgren 1/4" Airline Filter, Part no. DUS000090 or F72G.2GN-AL3

EXCELON design allows in-line or modular installation with other Excelon 72 products
High efficiency water and particle removal
Quick release bayonet bowl
Highly visible, prismatic liquid level indicator lens on metal bowls
Optional service indicator turns from green to red when the filter element needs to be replaced
Optional electrical service indicator also available
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl:
Manual or semi automatic drain: 17 bar (250 psig)
Automatic drain: 10 bar (150 psig)
Operating temperature*:
Transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +65°C (0° to +150°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Partical removal: 5 μm, 25 μm or 40 μm. Within ISO 8573-1, Class 3 and Class 5
Typical flow at 6,3 bar (90 psig) inlet pressure and 0,5 bar (7 psig) pressure drop:
5 μm element: 26 dm3/s (55 scfm)
40 μm element: 30 dm3/s (63 scfm)
Manual drain connection: 7/16-24 UNS male for 1/4" tube nut and ferrule
Semi automatic drain connection: Push on 8 mm (5/16") ID tube
Semi automatic drain operating conditions (pressure operated):
Bowl pressure required to close drain: Greater than 0,1 bar (1.5 psig)
Bowl pressure required to open drain: Less than 0,1 bar (1.5 psig)
Minimum air flow required to close drain: 0,5 dm3/s (1 scfm)
Manual operation: Lift stem to drain bowl
Automatic drain connection: 1/8"
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than 0,2 bar (3 psig)
Minimum air flow required to close drain: 0,1 dm3/s (0.2 scfm)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size:
Short bowl: 56 ml (1.9 fluid ounce)
Long bowl: 65 ml (2.2 fluid ounce)
Materials:
Body: Zinc
Bowl:
Transparent: Polycarbonate
Guard for transparent bowl: Zinc
Metal: Zinc
Metal bowl liquid level indicator lens:
Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and nitrile


Purchase online or for further information please contact parts@straightset.co.uk
