Breather Set. Norgren

£293.83 Ex. VAT
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

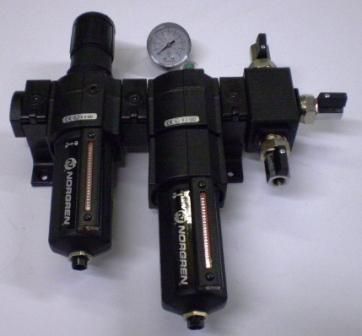

Air Breather Set for use in Spraybooth. Norgren Part No. 24.074.089. Norgren Air Breather Set for use in Spraybooths, Part No. AIR000014/1 or 24.074.089
Filter
EXCELON design allows in-line or modular installation
Quick release bayonet bowl
Highly visible, prismatic liquid level indicator lens
Optional mechanical service indicator turns from green to red when the filter element needs to be replaced
Optional electrical service indicator provides electrical output when the filter element needs to be replaced
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular application
Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Transparent bowl: -20° to 50°C (0° to 125°F)
Metal bowl: -20° to 80°C (0° to 175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Particle removal: 5, 25, or 40 μm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with a 40 μm element at 6,3 bar (90 psig) inlet pressure and 0,5 bar (7 psig) pressure drop: 83 dm3/s (176 scfm)
Manual drain connection: 1/8"
Automatic drain connection: 1/8"
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than 0,2 bar (3 psig)
Minimum air flow required to close drain: 1 dm3/s (2 scfm)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size: 0,2 litre (7 fluid ounce)
Materials:
Body: Aluminum
Bowl:
Transparent: Polycarbonate with steel bowl guard
Metal: Aluminum
Metal bowl liquid level indicator lens: Transparent nylon
Element: Sintered plastic
Elastomers: Neoprene and Nitrile
Filter/Regulator

EXCELON design allows in-line or modular installation
Quick release bayonet bowl
Highly visible, prismatic liquid level indicator lens
Full flow gauge ports
Balanced valve design minimizes effect of variation in the inlet pressure on the outlet pressure
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Transparent bowl: -20° to 50°C (0° to 125°F)
Metal bowl: -20° to 80°C (0° to 175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Particle removal: 5, 25 or 40 μm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with 10 bar (150 psig) inlet pressure, 6,3 (90 psig) set pressure and a droop of 1 bar (15 psig) from set:
100 dm3/s (212 scfm)
Manual drain connection: 1/8"
Automatic drain connection: 1/8"
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than 0,2 bar (3 psig)
Minimum air flow required to close drain: 1 dm3/s (2 scfm)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size: 0,2 litre (7 fluid ounce)
Gauge ports:
1⁄4 PTF with PTF main ports
Rc1⁄4 withPurchase online or for further information please contact parts@straightset.co.uk
