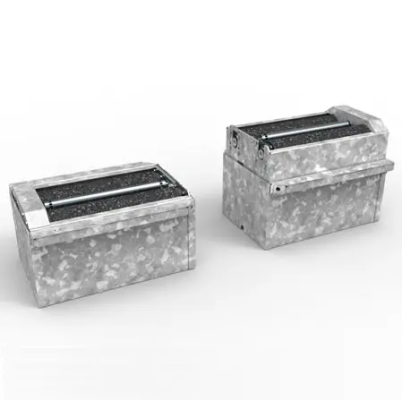

BM18200 Commercial Roller Brake Tester

Supplier: BM18200

Commercial Roller Brake Tester
With vertical lift for light and heavy vehicles
16T lifting capacity
255 mm lifting height of roller bed.
Option to retrofit without civil work into most popular subframes.

Skip to the beginning of the images gallery

Description

Advanced Load Simulation for Light & Heavy Vehicles

The BM18200 is a versatile brake tester designed for both light and heavy vehicles, featuring hydraulic lifting roller beds for precise load simulation. Each roller bed is supported by four hydraulic cylinders and controlled by intelligent software with built-in safety systems to protect both the vehicle and operator throughout testing.

This advanced unit can lift axle loads of up to 16 tonnes to a unique height of 255 mm above floor level, ensuring highly accurate brake performance analysis.

Key durability features include:

Hot-dip galvanization for maximum corrosion protection.
Heavy-duty bearings and gear motors engineered for load-simulated brake testing.
Strong shock absorbers to stabilise the centre roller.
An integrated control system that balances hydraulic lifting, preventing roller bed twist when axles are off-centre.
Built for Reliability & Low Maintenance
The BM18200 is designed for long-term performance, combining durability with reduced maintenance costs. Its adaptable construction also allows for optional upgrades, making it ideal for high-throughput MOT and inspection centres as well as demanding commercial workshops.

Specificiation

Roller bed per side (LxWxH): 1245x758x700mm

Subframe for split bed install (LxWxH): 1215x1120x150mm

Lifting frame for split bed install (LxWxH): 1262x1000x635mm

Roller diameter: 208mm

Roller length: 1000mm

For more information add to quote for a quick and convenient quotation direct to your inbox, alternatively contact our sales teams for more information on [email protected].
