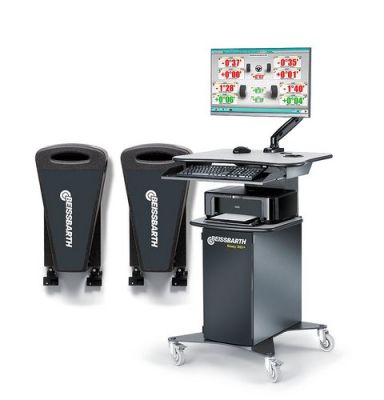

Beissbarth Easy 3D+ Wheel Alignment System

Beissbarth Wheel Alignment with 3D technology - High speed, high precision and easy to use, with cabinet. High Performance PC, 27" monitor and printer incl. lift adapter, turntable, wheel clamps and OEM magnetic clamp.

Contact Straightset for more information on 01909 480055 or info@straightset.co.uk.

NEW: Now with SmartTest - Quick alignment check with printout in under 90 seconds

• Highly automated routine
• Automatic target recognition
• Automated printout of protocol and reset for next vehicle check

Perfectly integrated in ADAS calibration and head light testing:

• The space in front of the lift can be used for the ADAS calibration jig and head light tester
• Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
• No need for extra cameras, cables, clamps or targets required for ADAS calibration

Best in class: +/- 2 minute accuracy

• Engineered and produced in Germany
• No fixed position for targets on the vehicle eliminates room for error
• Plug & play: no calibration required for installation or for exchanging targets
• Space-saving and easy storage of sensor heads on wall mount kit
• Beissbarth DualView camera system for ultimate control, especially of complex chassis
• OEM magnetic clamps for safe mounting on the wheel

Highly repeatable initial measurement

• Rolling or driving run-out compensation at ground level
• Three selectable measurement routines: program-driven, quick measurement, choice-free access to single-value check

Sophisticated software for maximum measurement and adjustment efficiency

• Real-time display of measured values combined with vehicle specs
• Visually animated adjustment instructions for third-party vehicles
• Several languages as standard for staff from all over the world
• ASA network ready
• Cable version

Scope of delivery:

• Sensor head with DualView camera technology
• +Software with SmartTest and ADAS calibration option
• Target boards
• Vehicle specs database
• Cabinet
• HighPerformance PC
• 27" Monitor
• Printer
• Multi-Fit wheel camp 13" - 22" with standard and Softline claws
• OEM magnetic clamp
• Lift adapter
• Cable set, 15 m
• Turntable Standard, without electronics
• Remote control
• Brake pedal depressor and steering wheel holder
