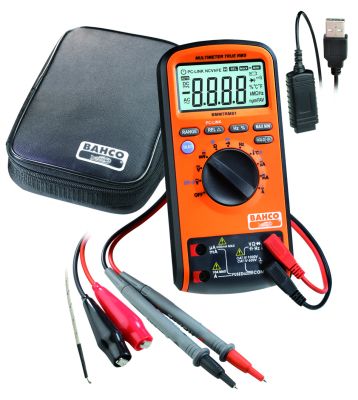

Bahco BMMTRMS1 Digital multimeter, auto ranging, True RMS 1000V and connection to PC

£154.19 (£185.03 Inc. VAT)
Straightset part number:
Supplier:
Availability: Contact us for delivery lead times
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

Precise and reliable the Bahco BMMTRMS1 Digital Multimeter is the perfect solution for users looking for a tester easy and safe to use when measuring AC/DC voltage, amperage, frequency, resistance, capacitance, continuity, polarity as well as temperature.
It includes:
Multimeter bag with multimeter strap holder
Needle test silicon probe leads set 1m long : Cat III 1000V, 10A
Alligator Clips test probe leads sets spring-loaded copper clips with a wide 12.7 mm (0.5 inch) jaw opening and serrated teeth 1m long: Cat III 1000V, 10A
T° sensor probe lead 1m long
Multimeter PC Connectivity USB Cable 1.2m long
USB Memory stick loaded with PC Link connectivity software and user manual in the following 12 languages:English-French-Spanish-Swedish-Turkish-Russian-Portugese-Italian-Greek-Sloven-Czek-Polish
Calibration report
1 battery 6F22(9V) included
Specifications:
True RMS measurement
Non Contact Voltage feature
Relative measurement
Auto power-off
Data hold
Backlight function
Auto/manual range
Polarity indication
Diode test
Continuity test
Low battery power indication
DC Voltage range : 600mV ±0.5%, 6V/60V/600V ±0,8%, 1000V ±1,0%
AC Voltage range: 600mV/6V/600V ±1,0%, 1000V ±1,5%
DC Current: 600uA/6mA/60mA/600mA6A/10A ±1,5%
CAT Rating: CATIII 1,000V CATIV 600V
Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±0,5%, 60MΩ ±1,5%
Capacitance: 6nF ±3,0%, 600nF/6uF/60uF/300uF ±5,0%
Logic Frequency: 10Hz~1MHz ±(0,1%+3)
Linear Frequency: 10Hz~10KHz ±(0,05%+8)
Duty cycle: 1%~99%
Temperature: -55°c~1000°c ±(2%+2)
Fuses protection: 0,63A/1000Vx1 for µA and mA ranges & 10A/1000Vx1 for 10A range
Precise and reliable instrument measuring current, voltage and resistance etc.
More accurate than analog thanks fo the digital display which eliminates parallax errors
Safe silicon needle test probes with long reach 1mtr leads
Easily transportable in the supplied case with carrying strapStraightset have a large range of Bahco workshop tools for Automotive Solutions. Purchase online or contact our friendly sales teams on 01909 480055 or info@straightset.co.uk.
