3/8 Lubricator

£35.00 Ex. VAT
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

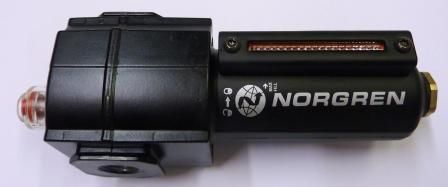

3/8" Lubricator. Norgren 3/8" Lubricator, Part No. AIR000040 or L73M-4GP-EDN

EXCELON design allows in-line or modular installation
Quick release bayonet bowl
Flow sensor design provides a nearly constant oil/air ratio over a wide range of air flows
Highly visible, prismatic liquid level indicator lens
All around (360°) visibility of the sight-feed dome simplifies installation and adjustment
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Start point (minimum flow required for lubricator operation): 0,71 dm3/s (1.5 scfm) at 6,3 bar (90 psig) inlet pressure
Maximum recommended flow: 28 dm3/s (60 scfm). Air flows above 28 dm3/s (60 scfm) create excessive air velocity, turbulence, and pressure losses. In addition, the fog produced by the lubricator will wet out on the pipe walls and will not be carried by the
compressed air to the point of application.
Typical flow with 6,3 bar (90 psig) inlet pressure and 0,25 bar (3.5 psig) pressure drop: 38 dm3/s (80 scfm)
Nominal bowl size: 0,1 litre (3.5 fluid ounce)
Manual drain connection: 1/8"
Recommended lubricants: See page N/AL.8.900.935
Materials:
Body: Aluminum
Bowl:
Transparent: Polycarbonate
Transparent with guard: Polycarbonate, steel guard
Metal: Aluminum
Metal bowl liquid level indicator lens: Transparent nylon
Sight-Feed dome: Transparent nylon
Elastomers: Neoprene and nitrile


Purchase online or for further information please contact parts@straightset.co.uk
Great range of Airline Fittings & Spares available at Straightset.
