3/4. Inline Filter

£99.00 (£118.80 Inc. VAT)
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

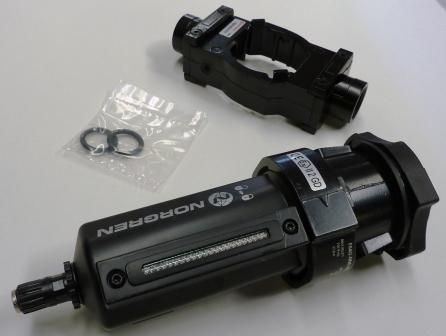

3/4" Inline Filter. Part No. F64G-NNN-AD3 Norgren 3/4" Inline Filter,;Part No. AIR000031 or F64G-NNN-AD3

Olympian Plus plug in design
High efficiency water and particle removal
Quick release bayonet bowl
High visibility prismatic sight glass
Optional service indicator

Technical Data
Fluid: Compressed air
Maximum pressure:
Guarded transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Guarded transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Partical removal: 5 μm, 25 μm or 40 μm. Within ISO 8573-1, Class 3 and Class 5
Typical flow at 6,3 bar (90 psig) inlet pressure and 0,5 bar (7 psig) pressure drop:
5 μm element: 55 dm3/s (116 scfm)
40 μm element: 70 dm3/s (148 scfm)
Automatic drain connection: 1/8"
Automatic drain operating conditions:
Minimum pressure: 0,7 bar (10 psig). Drain opens when bowl pressure drops below 0,2 bar (3 psig).
Minimum air flow: 1 dm3/s (2 scfm) required to close drain.
Nominal bowl size: 0,2 litre (7 fluid ounce)
Materials:
Body: Zinc
Yoke: Zinc
Metal bowl: Aluminium
Standard metal bowl prismatic liquid level indicator lens: Grilamid
Optional metal bowl sight glass: Pyrex
Optional transparent bowl: Polycarbonate
Element: Sintered plastic
Elastomers: Synthetic rubber


Purchase online or for further information please contact parts@straightset.co.uk
