1" Inline Filter

£199.00 Ex. VAT
Straightset part number:
Supplier:
Availability: Not in our warehouse but still available to order.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

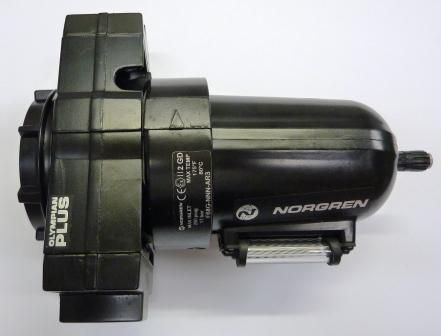

1" Inline Filter. Norgren 1" Inline Filter, Part No. AIR000048/1 or F68G.8GN.AR3

Olympian Plus plug in system
Effective liquid removal and positive solid particle filtration
Large filter element area provides minimum pressure drop
Optional visual service indicator turns from green to red when the filter element needs to be replaced
Optional electrical service life indicator provides electrical output when the filter element needs to be replaced


Technical Data
Fluid: Compressed air
Maximum pressure: 17 bar (250 psig)
Operating temperature*: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Partical removal: 5, 25 or 40 μm
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with a 40 μm element at 6,3 bar (90 psig) inlet pressure and a 0,5 bar (7 psig) pressure drop: 190 dm3/s (403 scfm)
1/4 turn manual drain connection: 1/8" pipe thread
Automatic drain connection: 1/8" pipe thread
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than 0,2 bar (3 psig)
Minimum air flow required to close drain: 1 dm3/s (2 scfm)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size:
0,5 litre (1 pint U.S.)
1 litre (1 quart U.S.)
Materials:
Body: Aluminium
Yoke: Aluminium
Bowl: Aluminium
Liquid level indicator: Pyrex
Element: Sintered bronze
Elastomers: Synthetic rubber


Purchase online or for further information please contact parts@straightset.co.uk
