1/4. Filter Regulator

Straightset part number:
Supplier:
Availability: Not in our warehouse but still available to order.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

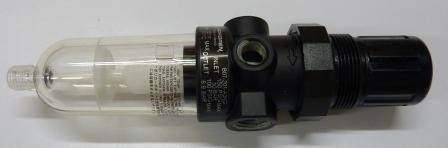

1/4" Filter Regulator. Norgren 1/4" Filter Regulator, Part No. AIR000010 or B07-201-A3KG
Compact design
Full flow gauge ports
Low torque, non-rising adjusting knob
Snap action knob locks pressure setting when pushed in
Standard relieving models allow reduction of outlet pressure even when the system is dead-ended
Protects air operated devices by removing liquid and solids contaminants
Screw-on bowl reduces maintenance time
Can be disassembled without the use of tools or removal from the air line

Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature:*
Transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +65°C (0° to +150°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F)
Particle removal: 5 μm or 40 μm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow at 10 bar (100 psig) inlet pressure, 6,3 bar (90 psig) set pressure and a droop of 1 bar (15 psig) from set:
1/8" Ports: 6,2 dm3/s (13 scfm) with 5 μm element
1/4" Ports: 6,5 dm3/s (14 scfm) with 5 μm element
Nominal bowl size: 31 ml (1 fluid ounce)
Gauge ports:
1/8" PTF with PTF main ports
1/8" ISO Rc with ISO Rc main ports
1/8" ISO Rc with ISO G main ports
Drain connection: 1/8" pipe
Automatic drain operation: Spitter type drain operates momentarily when a rapid change in air flow occurs or when the supply pressure is reduced.
Materials:
Body: Zinc
Bonnet: Acetal
Valve: Brass/nitrile
Valve seat: Acetal
Bowl:
Transparent: Polycarbonate
Metal: Zinc
Element: Sintered polypropylene
Elastomers: Nitrile


Purchase online or for further information please contact [email protected]
