1/2. Inline Regulator

£34.38 Ex. VAT
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

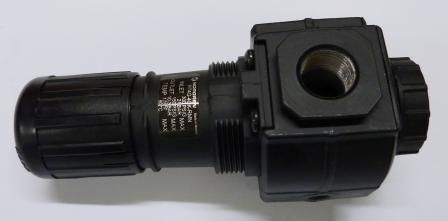

1/2" Inline Regulator. R74G-4GK-RMNNorgren 1/2" Inline Regulator ;Part No. AIR000049 or R74G-4GK-RMN

EXCELON design allows in-line or modular installation
Full flow gauge ports
Balanced valve design minimizes effect of variation in the inlet pressure on the outlet pressure
Standard relieving models allow reduction of downstream pressure when the system is dead-ended
Optional reverse flow models available for use downstream of directional control valves
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Technical Data
Fluid: Compressed air
Maximum pressure: 20 bar (300 psig)
Operating temperature*: -20° to 80°C (0° to 175°F)
*Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Typical flow with 10 bar (150 psig) inlet pressure, 6,3 bar (90 psig) set pressure and a droop of 1 bar (15 psig) from set: 105 dm3/s (220 scfm)
Gauge ports:
1/4 PTF with PTF main ports
Rc1/4 with ISO Rc main ports
Rc1/8 with ISO G main ports
Materials:
Body: Aluminum
Bonnet : Aluminum
Valve: Brass
Elastomers: Nitrile
Bottom plug: Acetal


Purchase online or for further information please contact parts@straightset.co.uk
