1/2. Filter Regulator

£56.95 (£68.34 Inc. VAT)
Straightset part number:
Supplier:
Availability: Available in 3 working days.
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

Full Description

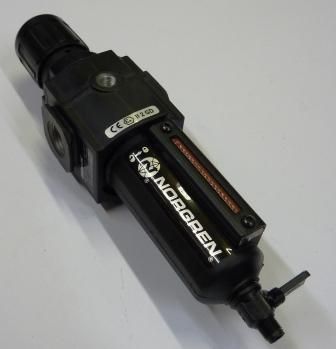

1/2" Filter Regulator. Norgren " Filter Regulator Part No. AIR000009 or B73G.4GK.QD3.RMN
EXCELON design allows in-line or modular installation
Quick release bayonet bowl
Highly visible, prismatic liquid level indicator lens
Full flow gauge ports
Balanced valve design minimizes effect of variation in the inlet pressure on the outlet pressure
Modular installations with EXCELON 72, 73, and 74 series can be made to suit particular applications

Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Particle removal: 5 μm, 25 μm or 40 μm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with 10 bar (150 psig) inlet pressure, 6,3 bar (90 psig)
set pressure and 1 bar (15 psig) droop from set:
50 dm3/s (106 scfm)
Manual drain connection: 1/8"
Automatic drain connection: 1/8"
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 0,3 bar (5 psig)
Bowl pressure required to open drain: Less than 0,2 bar (3 psig)
Minimum air flow required to close drain: 0,1 dm3/s (0.2 scfm)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size: 0,1 litre (3.5 fluid ounce)
Gauge ports:
1⁄4 PTF with PTF main ports
Rc1/4 with ISO Rc main ports
Rc1/8 with ISO G main ports
Materials:
Body: Aluminum
Bonnet: Aluminum
Valve: Brass
Bowl:
Transparent: Polycarbonate
Transparent with guard: Polycarbonate, steel guard
Metal: Aluminum
Metal bowl liquid level indicator lens: Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and nitrile
Purchase online or for further information please contact parts@straightset.co.uk
